High Accuracy Dual-Band (L1,L5) GNSS Receiver GPS GLONASS Galileo Beidou QZSS Support, 135 Channel

Product Description

Min Order Quantity：1 Piece

Supply Ability：100

Country/Region：Germany

City：Cologne

Product Attributes

- Place of Origin Taiwan
- Supply Type In-Stock Items
- Condition New
- Related Keywords GNSS receiver, GPS Glonass Galileo, Beidou QZSS, L1+L5 Channel

Description by Manufacturer

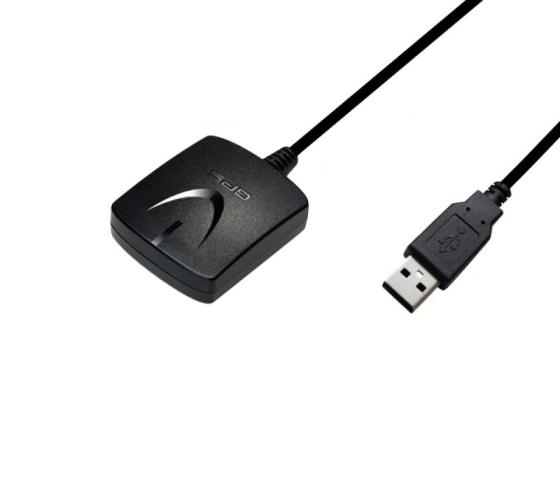

It is high-performance dual-band GNSS receiver (GNSS mouse) that are capable of tracking global civil navigation systems (GPS, GLONASS, BeiDou, Galileo, QZSS). The GNSS mouse will acquire both L1 and L5 signals at a time while providing the better position accuracy. It can provide you with fast Time-To-First-Fix, superior sensitivity and low power consumption. Its far-reaching capability meets the sensitivity requirements of car navigation as well as other location-based applications.

The receiver supports hybrid ephemeris prediction (EASY and EPO) to perform a faster cold start less than 15 seconds . Both ephemeris predictions are automatically updated from time to time and saved in the built-in flash memory.
The device is offered with the USB connector (type A). We provide drivers for Windows, Mac, Linux and APP for Android smartphones/ tablets.

Main features

Position accuracy under one meter
Concurrent reception of L1 and L5 band signals
Supports GPS, GLONASS, BEIDOU, GALILEO, QZSS
SBAS-capable (WAAS, EGNOS, MSAS, GAGAN)
Supports 135-channel GNSS
Fast TTFF at low signal level
Supports PPS through USB
Build-in micro battery to reserve system data for rapid satellite acquisition
LED indicator for GNSS fix
Magnet for mounting on the car
Cable length 2m
Waterproof

Application

Personal positioning and navigation
Automotive navigation
Marine navigation
High-quality NTP time server

Delivery: GNSS receiver, download link (driver)
