Cultivator, farm implement or machine designed to stir the soil around a crop as it matures to promote growth and destroy weeds. A cultivator is a machine that disturbs the top surface of the soil to either prepare the soil into a smooth, loose, aerated seedbed, and/or to kill weeds.
Product Description
Cultivator, farm implement or machine designed to stir the soil around a crop as it matures to promote growth and destroy weeds. A cultivator is a machine that disturbs the top surface of the soil to either prepare the soil into a smooth, loose, aerated seedbed, and/or to kill weeds.
Looking for cultivator manufacturer or supplier? Welcome to contact us.
Performance Parameters

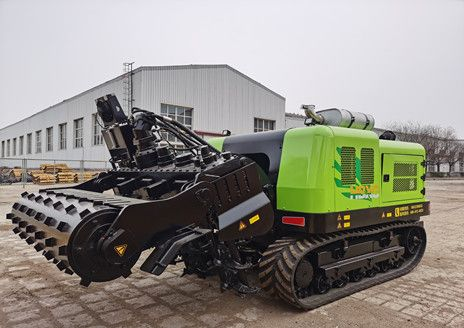

FS550-21 Smashing&Scarifying Cultivator Specifications | |
Dimension(Lengh*Width*Hight) | 5240X2100X2400(mm) |
Operating weight | 11600 Kg |
Grade ability | 20° |
Fuel tank capacity | 440L |
Hydraulic oil tank capacity | 280 L |
Ground clearance | 350mm |
Engine | |
Model | Dongfeng Cummins QSZ13-C550-Ⅲ |
Rated power | 410 kw/1900r/min |
Max. Torque | 2300N.m/1200~1700r/min |
Displacement | 13L |
Undercarriage | |
Track width | 450 mm |
Track | Rubber track |
Carrier roller(single side) | 2 pcs |
Track roller(single side) | 6 pcs |
Idler(single side) | 1 piece |
Travel Tansmission Hydraulic system | |
Double circuit loop electric control hydrostatic driving system | |
Brake | wet type multi-disc braking device |
Final drive | two stages planetary gear speed reduction final drive. |
Travel speed | 0-5.5 km/h |
Max. working pressure | 40 Mpa |
Implement hydraulic system | |
Control method | electric hydraulic control |
System flow | 115L/MIN |
Max. working pressure | 20 Mpa |
Smashing & scarifying hydraulic system | |
Control way | electric hydraulic control |
System flow | 480 L/MIN |
Max. working pressure | 40 Mpa |
Rotary tillage device | |
Auger | 6 sets |
Max. tilling depth | 500mm |
Tilling width | 2100 mm |
Max. rotating speed | 506r/min |
