Horizontal Nitrogen Production Equipment
Horizontal Nitrogen Production Equipment
Product Description
Features
Stable and durable
Portable and easy to operate
Technical Parameters
| Nitrogen flow | 1~2000Nm³/h |
| Nitrogen pressure | 0.05~0.8MPa |
| Nitrogen purity | 95～99% |
| Dew point | ≤-40℃ |

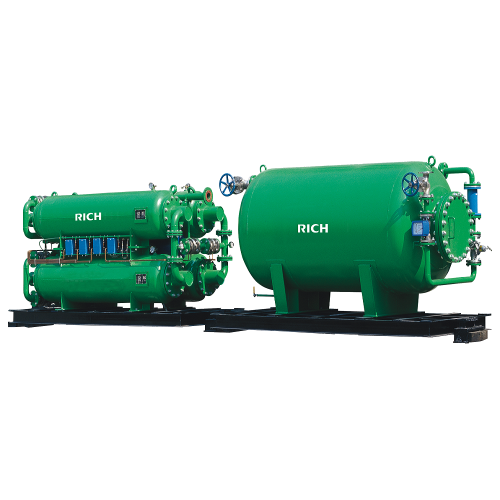

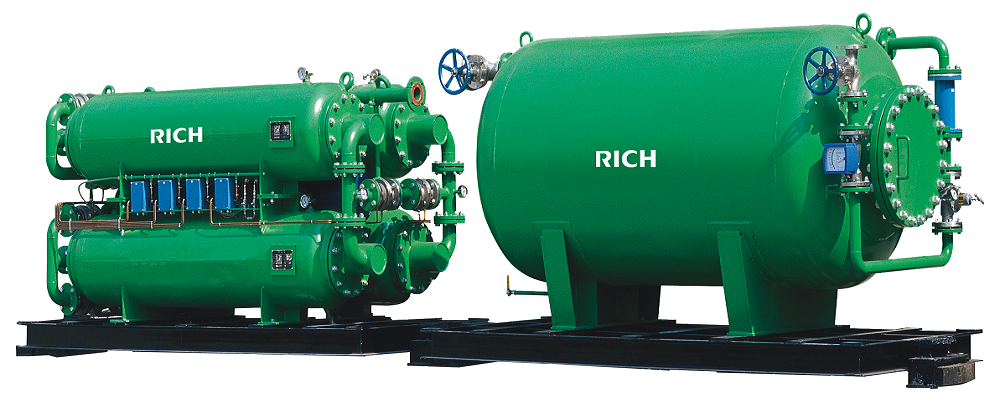

Horizontal Nitrogen Production Equipment Composition
Nitrogen generation unit: Composed of horizontal adsorption tower, adsorbent, airbag pressing device, program-controlled valve, silencer, auxiliary instrument, flat car, etc.
Buffer unit: Composed of horizontal nitrogen buffer tank, filters, auxiliary instrument, flatbed, etc.
Why Choose RICH On-Site Nitrogen Generation Systems?
-
Global Deployment Experience: 4,000+ systems verified in 60+ countries, stably operating from -50°C oilfields in Siberia to mining sites in the Sahara Desert
-
Full-Scenario Coverage: Flow rates from 5 to 50,000 Nm³/h, purity levels from 95% to 99.999%, meeting diverse needs such as purging, inerting, and preservation
-
Cost Reduction by 60%: Savings of 50%-70% compared to liquid nitrogen procurement and 30% lower operational costs compared to pipeline nitrogen supply
-
Rapid Deployment: Containerized modular design allows commissioning within 24 hours, supporting multimodal transportation by sea, land, and air
