Embedded 2d Barcode Scanner Module
Embedded 2D Barcode Scanner Module – the ideal solution for efficient, cost-effective, and customizable barcode scanning applications. As a leading provider of technology solutions, we offer a range of options, including the Cheap 2D Barcode Scanner Module and OEM 2D Barcode Scanner Module, designed to meet diverse needs.
Product Description
Embedded 2D Barcode Scanner Module – the ideal solution for efficient, cost-effective, and customizable barcode scanning applications. As a leading provider of technology solutions, we offer a range of options, including the Cheap 2D Barcode Scanner Module and OEM 2D Barcode Scanner Module, designed to meet diverse needs.
This OEM 2D Barcode Scanner Module is designed to offer an affordable yet efficient option for a variety of applications, including GM QR Code scanning, book QR code scanning, location QR code scanning, and bulk QR code scanning. Compare prices.

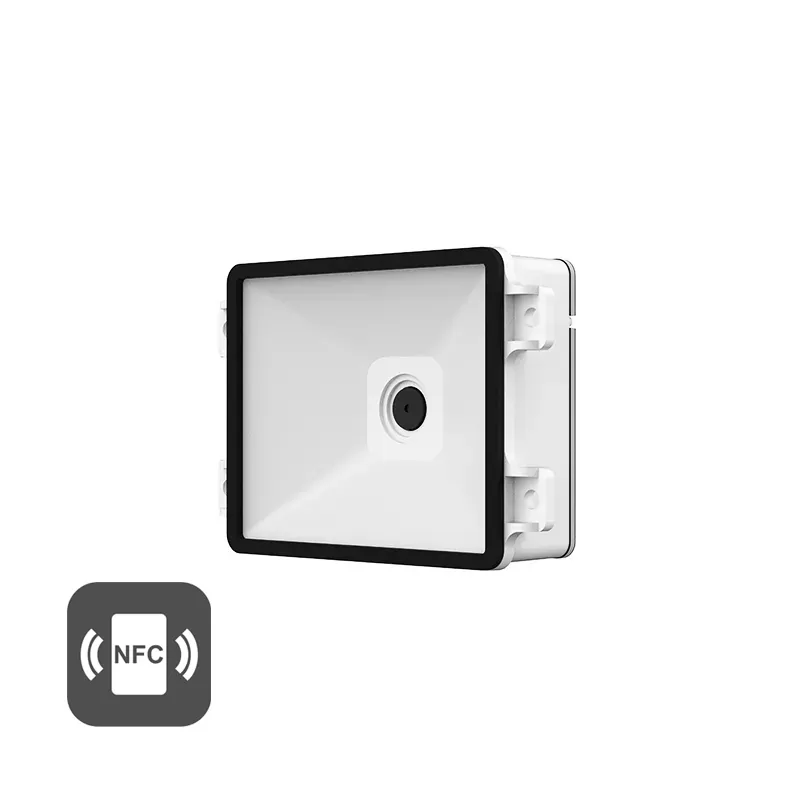

| Model | EM1730 Embedded 2d Barcode Scanner Module | |
| Scan Code Performance | Image Sensor | 640 x 480 CMOS , 30fps |
| Perspective | Horizontal 74°, Vertical 58° | |
| Reading angle | Rotation: 360°, Pitch: ±60°, Deflection: ±60° | |
| Code system |
2D: QR 、PDF417、DataMatrix (ECC200)、Aztec、Micro QR、Han Xin Code、Maxicode、 Micro PDF417、Code 16K 1D: EAN13、EAN8、UPC-A、UPC-E0、UPC-E1、Code128、Code39、Code93、CodaBar、 Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code11、 MSI-Plessey、Standard 2 of 5、 Plessey、China Post、GS1 Databar (RSS-Expand, RSS-Limited, RSS-14) |
|
| Classic depth of field | WeChat payment code: 12~200mm Refund code: 40~65mm | |
| Reading accuracy | 1D : ≥5mil / 2D : ≥10mil | |
| Sign contrast | ≥ 25% | |
| Motion tolerance | ≥ 80cm/s (payment code) | |
|
Environmental Parameter |
Light source | White LED ( 6500K ) |
| Operating Voltage | DC +3.3V ~ +5V (±5%) | |
| Working current | 140mA@5V power supply | |
| Weight | < 15g | |
| Physical dimension | 53.5mm x36mm x 16mm ( LxWxH ) | |
| Material | ABS | |
| Communication port | USB VCP / USB HID-KBW (Default) / USB HID-POS / TTL-232 | |
| NFC Optional | Standards compliant | ISO14443 TypeA /B , M1 |
| Card reading distance | 0~4cm | |
| Function | read sectors, read blocks | |
| Output | Decimal forward or reverse output can be set, hexadecimal forward or reverse output can be set | |
Key Features of 2d Barcode Scanner Module:
Specifically designed to decode GM QR Codes, our module ensures accurate and swift scanning, making it an excellent fit for automotive and manufacturing industries.
Perfect for libraries, bookstores, and educational institutions, our module efficiently scans book QR codes, streamlining book inventory management processes.
Ideal for logistics and tracking applications, our module excels at scanning location-specific QR codes, enhancing overall operational efficiency.
With its ability to handle bulk scanning tasks, our module is well-suited for inventory management, reducing manual effort and improving accuracy.
Featuring automatic scanning capabilities, our module enhances workflow automation, making it a valuable asset in various industries.
Recognized for its reliability and performance, our module stands out as one of the best 2D barcode scanners in the market.
Boasting high-speed scanning capabilities, our module ensures swift and efficient data capture, saving valuable time in critical operations.
2d Barcode Scanner Module Applications:
· Book QR Code Scanner Online: Seamlessly integrate our module into online platforms for virtual book scanning, facilitating online library services.
· Medicine QR Code Scanner: Ensure pharmaceutical traceability and safety with our module's precise scanning of medicine QR codes, supporting compliance with industry standards.
To explore more applications click here.
Our embedded 2D barcode scanner modules are the epitome of efficiency, affordability and adaptability. They perform well in various industries such as healthcare and logistics. Choose our solutions for your barcode scanning needs and experience the perfect combination of cutting-edge technology and cost-effectiveness.
