Product Description
Min Order Quantity:10 Piece
Supply Ability:20,000 Set/ Sets per Month
Delivery Lead Time:60 days for OEM, 7 days for ready goods
Country/Region:China
City:Jiangmen
Housing & Finishing

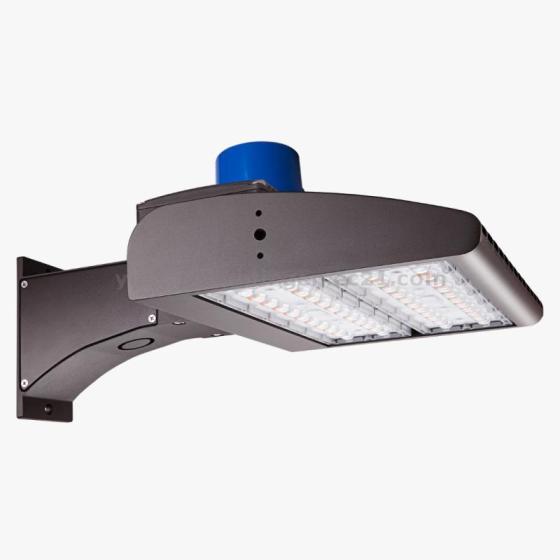

This fixture has a die-casting aluminium housing with integrated heat sink for maximum heat transfer and long LED life.
External bracket fixed by 4pcs screws, save labor cost for installation or maintenance.
Corrosion resistant polyester powder coating. Salt spray test 3000hrs
Standard color: dark bronze. Custom color available.
LED & Optical system
Utilizes high brightness LEDs, minimum 80 CRI at 4000K typically (3000K and 5000K optional).
LM—79 tests and reports in accordance with IESNA standards.
Optic lens: Type II , Type III, Type IV, Type V
Other beam characteristics are available for customer specific lighting requirements.
Electrical
UL version: standard 120~277VAC with 347~480VAC optional
Meanwell driver 0-10V dimmable, 10KV surge protector
Ratings
UL and DLC listed
Mounting options
Square pole
Round pole
Slip fitter
Trunnion
Designed for stairway security lighting and parking lot,car parking lighting, area & storage lighting ,lighted walkway bollards, building external doorway lighting, signage illumination, street lighting.
Light Source:CREE/Lumileds
Driver:Philips/Meanwell/Inventronics/Moso
Power range:80W/120W/150W/220W/300W
Voltage:90-305Vac/347-480Vac
Size:330x302mm/330x495mm
Weight:7.3kg/11.1kg
CCT:3000K/4000K/5000K
Optical :Type II/Type III/Type IV/Type V
Efficacy:130lm/W standard, 150lm/W optional
CRI:Ra>80
IP Rating:IP66
IK Rating:IK09
Adjustable:0-90°
Temperature:-20℃ to +55℃
Warranty:5Years
Smart control:0-10v dim, photo sensor, motion sensor, smart city control system
