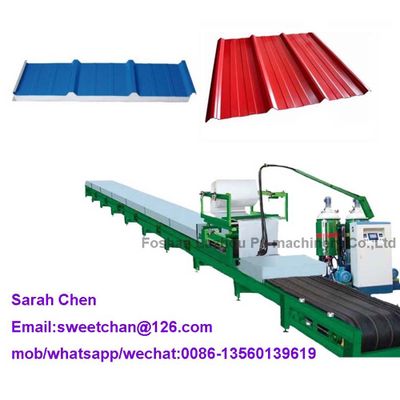

Sandwich panel pu machine line steel tile foaming making machine

Sandwich panel pu machine line steel tile foaming making machine

Product Description

This machine used to produce steel tile, activity sheets, PU insulation products, PU sheets, PU composite panels, ect.

Product Feature

Control: Microcomputer PLC control; TIAN electricalcomponents exclusively imported to achieve the goal for automatic, accurate and reliable control can be imputed with more than 500 working position data; pressure, temperature and rotation rate digital tracking and display automatic control; abnormity or fault alam devices.Improted frequency converter (PLC) can control the proportion of 8 different products.

Main unit:Material injection by a precision needle valve,which is taper sealed,never worn,and never clogged; the mixing head produces complete material stirring; precise metering (K series precision metering pump control is exclusively adopted); single button operation for convenient operation; switching to a different desity or color at any time; easy to maintain and operate.

Product Specification / Models

Item No.: LZ-908 Color steel plate foaming machine
Gross Power: 26KW,4*380V/60HZ
Applicable Foaming: Rigid, semi-rigid, ect.
Injecting Flux: 60g-150g/S (Attention:the flux could be configured)
Injecting Pressure: 0.1MPA-3.99MPA
The mix proportion: 100-60;100-120
Viscosity(22°): POLY 500-2000MPAS
Viscosity(22°): ISO 500-2000MPAS
Time of injecting: Continuous
Precision of injection: 0.1/100
Pneumatic operating pressure: 0.6-0.8MPa
Area of Machine: Width: 2.3M; Height: 2.6M;Height:3.5M
Weight of Machine: 1.5 Ton
Pouring Head: Type of Pour Plug
Heating System: The temperature can be controlled automatically
