ZYJ-400/130 Fully Hydraulic Column Drilling Rig

Structure:

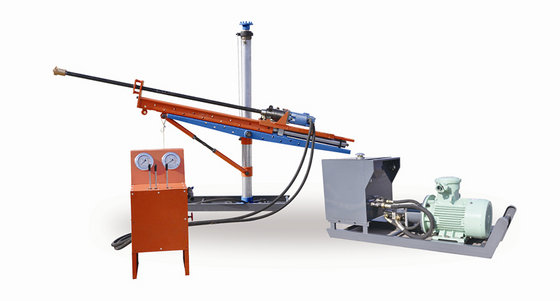

The drilling rig consists of propelling and supporting unit (drilling rig), power pack, operational panel. The colum can press against the tunnel roof tightly by the column cylinder, At the same time, the column bracket helps to improve the stability and safety during drilling.
The propelling device fixed on the column locking sleeve crosses with the column. Multi stages cylinders insice the slide track drives the slide plate to run along the track. The cycloid motor driven by the high pressure oil drives the rotation of the drilling bit through the output shaft of the rotation unit.
Usage:
Mainly for the hole drilling of geological exploration, gas release, water or coal exploration, through hole, bolting hole.
Features:
The whole machine can be disassembled to transport, reduce the labor intensity.
The drilling bit can be alloy, PDC, it can be used in the coal mine and other mines.
The drilling rig can attach to the roadheader.
No. Description Unit Parameters
Drilling
machine 1 Working pressure Mpa 12
2 Nominal torque N.m 400
3 Nominal rotation speed r/min 130
4 Nominal flow rate L/min 43/13
5 Propelling force (adjustable) K/N First stage cylinder:20 Second stage cylinder:10
6 Propelling stroke mm First stage cylinder:500 Second stage cylinder: 580
7 Drilling diameter mm Φ65-Φ94
8 Guide track length mm 1910
9 1 2 3 4
10 Max. height of drilling rig mm 3800 3200 2600 2100
11 Min. height of drilling rig mm 3200 2600 2000 1500
12 Standard column weight Kg 140
13 Drilling speed mm/min 200
14 Drilling depth m 150
Power
Pack 15 Nominal pressure Mpa 12
16 Nominal flow rate L/min 45/14
17 Nominal power of motor KW 11
18 Nominal voltage of motor V 380/660 660/1140
19 Nominal current of motor A 22.6/13.1 12.6/7.3
20 Usable capacity of oil tank L 120
21 Overall dimensions (L*W*H) mm 1370*460*790
22 Weight of power pack kg 240
