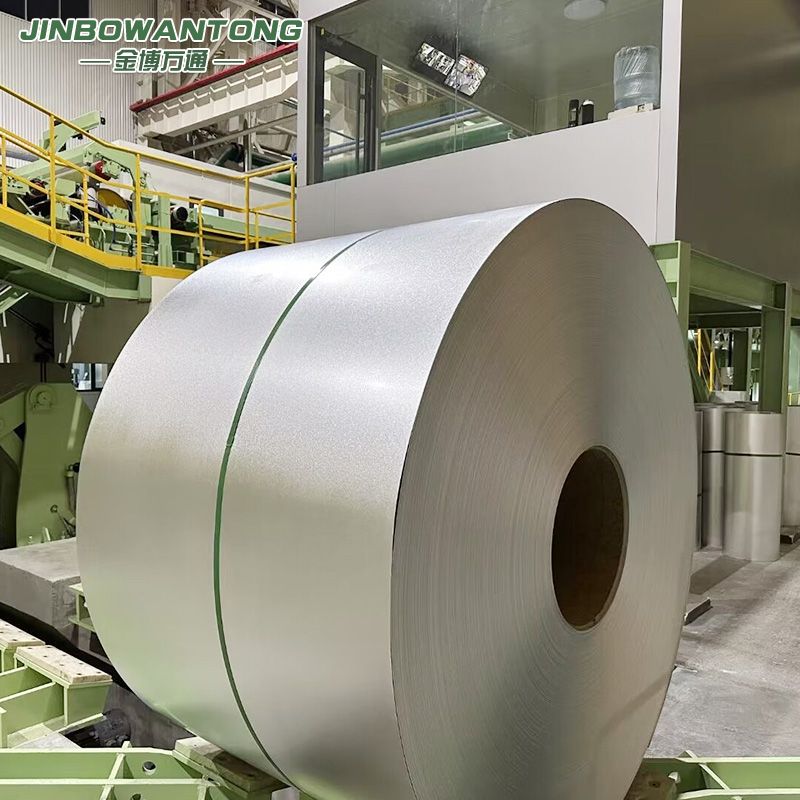

Galvalume Steel Coil

Galvalume Steel Coil

Product Description

Galvalume steel coil is based on cold-rolled steel strip as substrate, it is solidified of 55% aluminum, 43.4 zinc and 1.6% silicon solidi-filed at 600℃ high temperature and composition. Prepainted galvalume steel coil combines durability, excellent heat resistance, and formability of aluminum, and those of zinc that offer high heat resistance and excellent corrosion protection, to form into this kind of dense crystalline quaternary alloy coated steel.The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and its base color is silver white.

Specifications



Hs code

721061

standard

JIS G3321, ASTM A782M/A794M or equivalent

Grade

DX51D+AZ, SGLCC, SGLCH, DX52D+AZ, S250GD+AZ, S550GD+AZ

Thickness

0.12mm-1.0mm

Width

600-1250mm

Coil id

508mm/610mm

Coating mass

Az30-az150

Coil weight

3-8tons

Hardness

soft hard(HRB<60);medium hard(HRB60~85); full hard(HRB85~95)

Yield Strength

140-300 (DQ Grade)

Tensile Strength

270-500 (CQ Grade)/270-420 (DQ Grade)

Elongation Percentage

22 (CQ Grade thickness less 0.7mm) / 24 (DQ Grade thickness less 0.7mm



Galvalume(Aluzinc) Steel Coil Process



The common manufacturing process is known as the hot-dipping process. Let's review step by step.

1. Pre-treatment: Through the pre-treatment system, the contaminants on the surface of the base metal will be removed. It often includes degreasing, rinsing, pickling, etc.

2. Hot-dip Galvalume Process: After going through the annealing furnace, steel sheets are dipped into the Al-Zn pool. Then there is an air knife to remove the extra coating to keep the thickness of the coating.

3. Inspection & Coiling

The coated steel sheet will go through the quality control system and then be rolled up for sale.

So the structure of Galvalume steel includes: Base metal (cold-rolled steel sheets)

The al-Zn coating layer (top and back sides)
