Polycrystalline Diamond Cup Wheel (PCD) is a high-quality cutting material that is stronger and more durable than most conventional diamond cup wheels on the market today.
Product Description
Polycrystalline Diamond Cup Wheel (PCD) is a high-quality cutting material that is stronger and more durable than most conventional diamond cup wheels on the market today. It can be used for machining stone, wood, plastics and non-ferrous metals. PCD is made from different sized diamond crystals by sintering. As a result, PCDs are very hard and wear-resistant, have a longer service life and are quick to remove.
We produce PCD cup wheels with advanced technology, designed for high-performance surface grinding on concrete, tile and asphalt surfaces, for effective removal of surface coatings, glue, polyurethane, cement, glue and paint. PCD diamond cup wheels are ideal for removing a wide range of coatings. Segmented grinding wheels are considered some of the best wheels on the market today because of their superior performance and long service life.
Let us know the type of surface you're grinding and there's always the right cup wheel for you.
Direct China supplier and accept OEM order with best price.
We select premium quality PCD material provided by the tier-1 supplier in China with strict standard, Designed to remove the expoy-coating-made paint, glue on concrete floor and surface in high efficiency and long durability.

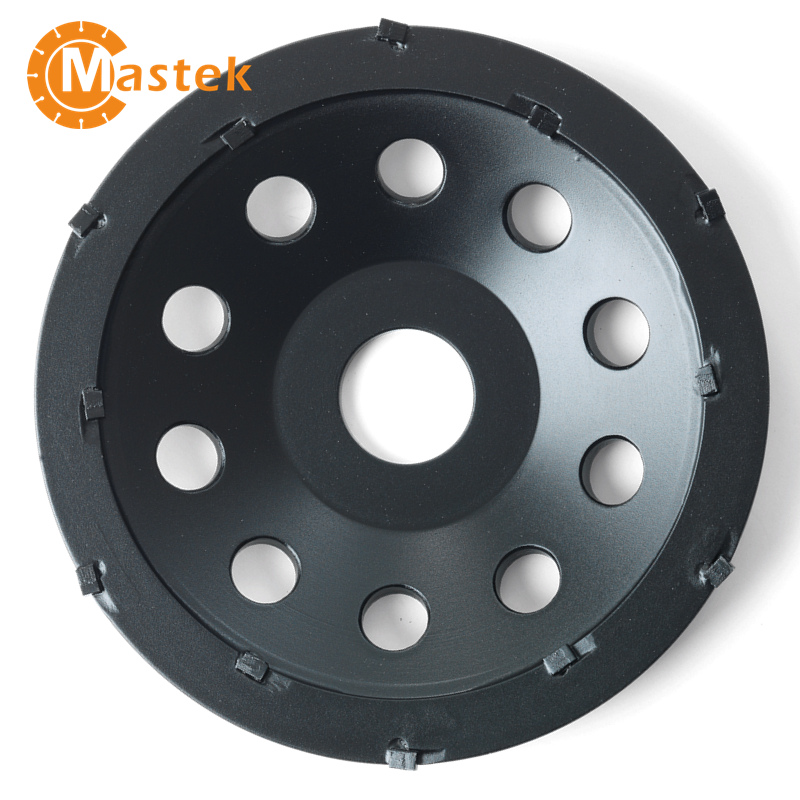

Product Name: PCD Diamond Grinding Wheel
Type of Bond: Metal/ Steel
Diameter: 5''/125mm
Segment Thickness: 3 mm
Arbor: 22.23 mm or customized
Pinhole: NO
WET Use is suggested.
*Other Diameter is available, feel free to drop your inquiry for further details.
1. Does not stain the surface coating like diamond cup wheels.
2. Can be used wet or dry.
3. Fast and effective removal without sticking due to PCD (polycrystalline diamond) segmentation.
3. Smooth but active sanding, specially designed hexagonal segments for smoother but active sanding.
4. Aggressive and high removal rate, ideal for removing coatings, adhesives and mortars such as epoxies, glues and vinyls.
5. Top quality PCD material from upstream supplier.
6. Quick and high-efficient working on expoxy removal.
7. Thickened steel center offer durable working life.
PCD Cup Wheels Application
This 5'' PCD Diamond Grinding Wheel is specially designed to remove epoxy plastic/ glue/ paint on the concrete surface and flooring for renovation.
Machine Models:
We suggest the PCD Diamond WHEEL be used on the floor grinding machine to achieve the best performance , or for portable and flexible use, also can be used on angle grinder for small job or flexible work.
❶ Customization against graphic drawings & samples is available.
❷ Free samples prior to order for testing is available.
❸ We offer free OEM package design service.
❹ We have a wide range of packing materials for your choice.
Q1. What does PCD stand for in grinding?
A: PCD is an abbreviation for Polycrystalline Diamond,and it is of substancial higher tanacity than monocrystal diamond made tools. Besides, it is doing better on self-sharpening. In this way, PCD diamond cup wheel get higher efficiency and longer durability. It is mainly engineered for removal of epoxy coating & paint, bituminous coating, latex or adhesives.
Q2: How to choose diamond grinding wheel for concrete?
A: If the purpose is to roughly grind even the concrete surface, a coarse grit of #30-#40 is enough to do the job. Hence this grade of quality will come with a low and economic pricing. However, if you wanna achieve a finer polishing effect out of the concrete surface, a finer grits over #40 is better choice. When it comes to removal of the epoxy coating, the PCD cup wheel is mostly considered for higher efficiency. Meahwhile, it last longer life than the commen sinter diamond cup wheels.
