API-7K Triplex Mud Pumps F-1000
Multiple liner sizes allow pressures and volumes to handle circulation requirements in deep drilling applications.
Product Description

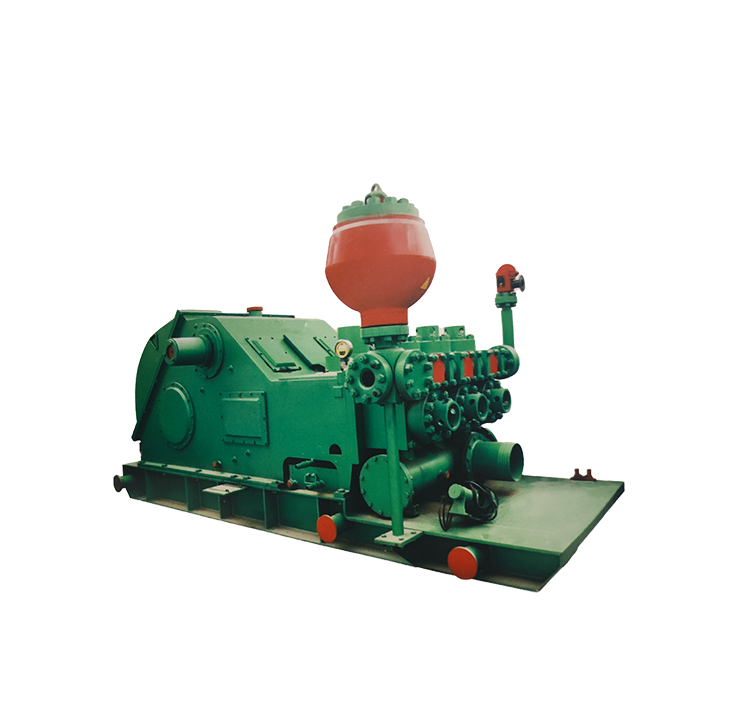

F-1000 Triplex Mud Pumps (API-7K)
Multiple liner sizes allow pressures and volumes to handle circulation requirements in deep drilling applications.
Specifications of F-1000 Triplex Mud Pumps
Rated Horsepower: 1,000 HP
Rated Pump Speed: 140 SPM
Maximum Liner Size by Stroke Length: 6-3/4" x 10"
Suction Connection: 12"
Discharge Connection: 5-1/8" 5,000 psi Flange
Gear Ratio: 4.207:1
Valve Pot: API #6
Approximate Weight: 41,425 lbs
Performance of Triplex Mud Pumps
|
Liner Size, inches |
6-3/4 |
6-1/2 |
6 |
5-1/2 |
5 |
4 |
|
|
Rated Pressure, psi |
2,370 |
2,558 |
3,000 |
3,572 |
4,322 |
5,000 |
|
|
Pump Speed |
Input Power |
Displacement, GPM |
|||||
|
140 |
1,000 |
651 |
603 |
514 |
432 |
357 |
289 |
|
130 |
928 |
604 |
560 |
477 |
401 |
331 |
269 |
|
120 |
857 |
558 |
517 |
441 |
370 |
306 |
248 |
|
110 |
785 |
511 |
474 |
404 |
339 |
280 |
227 |
|
100 |
714 |
465 |
431 |
367 |
309 |
255 |
207 |
|
90 |
642 |
418 |
388 |
330 |
278 |
229 |
186 |
|
Volume/Stroke, gallons |
4.65 |
4.31 |
3.67 |
3.09 |
2.55 |
2.07 |
|
