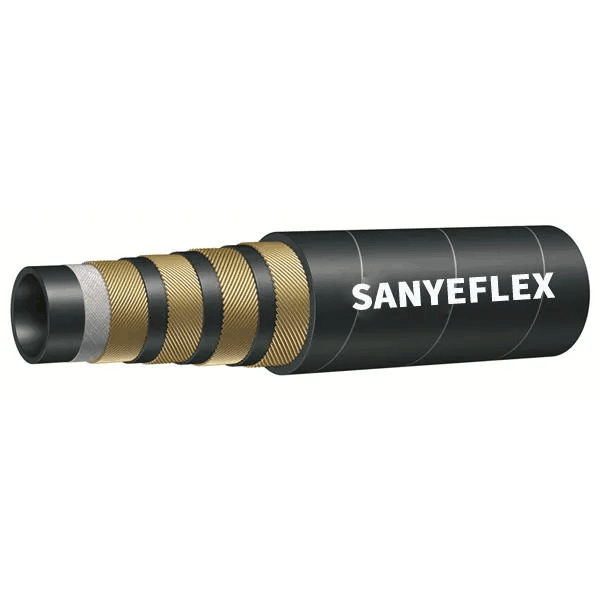

sae 100 r9 steel wire spiraled hydraulic hose
Product Description
SAE 100 R9
Wrapped Cover / Smooth Cover
SAE 100 R9 (Wrapped Cover / Smooth Cover)
INNER TUBE: oil resistant synthetic rubber
REINFORCEMENT: four spirals of high tensile steel wire
COVER: abrasion and weather resistant synthetic rubber
TEMPERATURE RANGE: -4β to +100β
Application: This section covers hose for use with petroleum base hydraulic fluids
SAE 100 R9 steel wire spiraled hydraulic hose is suitable for delivering petroleum-based hydraulic oils in the working temperature of -40 °C to +100 °C. It is composed of three parts: tube, reinforcement and cover. The tube is made from high quality oil resistant synthetic rubber, making the hose widely used in delivering petroleum-based hydraulic oils. The reinforcement is made from four layers of high tensile and high strength spiraled steel wire in alternating direction, making the hose have very high working pressure. The cover is made from super high quality oil and weather resistant synthetic rubber, making the hose have longer service life.
