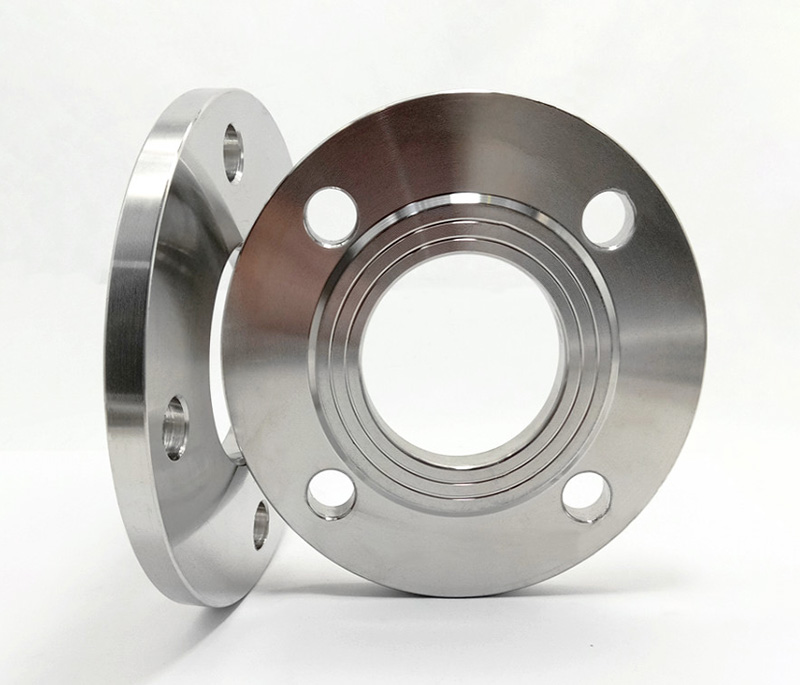

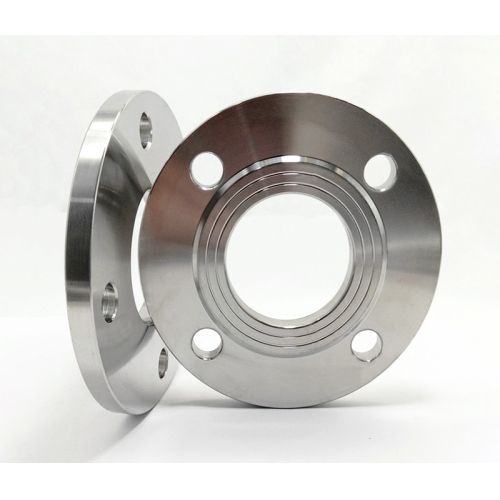

Description of JIS 10K Flange

Flange JIS 10k is a Japanese standard specification which stands for Deutsches Institut. This standard for ANSI B16. 5 JIS B2220 Flanges specification include systems like both Slip On Flange & Blind Flange. The size range for the Alloy Steel 5K KS B1503 Flanges are available from DN 10 to DN 2000.





Flange JIS 10k is a type of flange that conforms to the Japanese Industrial Standards (JIS) specification with a pressure rating of 10 kilograms per square centimeter (kg/cm²).



This type of flange is commonly used in industrial piping systems in Japan and other parts of the world, particularly in applications where moderate pressure and temperature conditions are involved, such as water supply, air conditioning, and general piping systems.



The JIS 10k flange comes in a variety of materials such as stainless steel, carbon steel, and alloy steel, and its dimensions are specified in JIS B2220. The flange face can either be flat-faced, raised-faced, or ring-joint, depending on the application and sealing requirements.



Specification

Material	Carbon Steel	ASTM A105, LF2, CL1 / CL2
		16MN,20#
	Stainless Steel	ASTM A182, F304 / 304L, F316 / 316L,A182F317/317L,A182F310,F321,F347,316Ti
	Alloy Steel	ASTM A182 A182 F12,F11,F22,F5,F9,F91,F51,F53,F55,F60,F44,F304H,F316H,F317H,F321H,F347H,INCONEL 600,625,825,etc.
Standard	ANSI B16.5	Class 150 Flanges-Class 2500 Flanges
	DIN	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar
	JIS	5K Flanges-30K Flanges
	EN1092-1	6Bar 10Bar 16Bar 25Bar 40Bar 63Bar 100Bar
Type	1. Plate Flange 2. Flat Flange 3. Slip on Flange 4. Welding Neck Flange 5. Long Welding Neck Flange 6. Blind Flange 7. Socket Welding Flange 8. Thread Flange 9. Screwed Flange 10. Lap Joint Flange. etc.
Connection Type	Raised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small-Tongue, Groove, etc
Size	1/2"-100",SCH5S-SCH160S,XS,XXS,STD
Heat Treatment	Normalizing, Annealing, Quenching Tempering
Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.



Details of JIS 10K flange

Pipe fun is a brand that offers a wide range of flange products to suit various piping applications. Their flanges come in sizes ranging from DN10 to DN3200 and are available in different types, including Weld Neck (WN), Slip-On (SO), Threaded (TH), Blind (BL), Plate (PL), and Socket Weld (SW) flanges.



In terms of material, Pipe fun provides flanges made from carbon steel, stainless steel, and alloyed materials, which can withstand high-pressure and temperature conditions. These materials are carefully selected to ensure that the flanges have excellent corrosion resistance, durability, and strength.



Furthermore, Pipe fun's flanges conform to various international standards, such as ASME, ANSI, BS, DIN, ISO, JID, GOST, and more. This makes it easier for customers to choose a flange that meets their specific needs and requirements. For example, customers can select a flange based on the pressure rating, temperature, and chemical properties of the fluids being transported.



Overall, Pipe fun's range of flanges provides customers with a diverse selection of reliable, high-quality products suitable for a wide range of industrial and commercial applications.



What is a flange used for?

Flanges are also called flange flanges or flanges. Flange structure is often used for the connection between shaft and shaft, between pipe fittings or between equipment and equipment. It can also be used for connection between motor and reducer, or reducer and other equipment.



What are different types of flanges?

Flanges can be divided into integral flanges, threaded flanges, flat welding flanges, butt welding flanges, loose flanges and flange covers according to the flange structure and connection mode.



Advantages

JIS 10K flanges offer several advantages that make them a popular choice for industrial piping systems. Here are some of the main advantages of JIS 10K flanges:
1. Easy installation: JIS 10K flanges are designed with a simple, slip-on connection that makes them easy to install and remove. This saves time and reduces labor costs during installation and maintenance.
2. Wide range of sizes: JIS 10K flanges are available in a wide range of sizes, from small diameters to large ones, making them suitable for a variety of piping systems.
3. Versatility: JIS 10K flanges can be used in different types of piping systems, including those that carry gas, oil, water, and other fluids.
4. Corrosion resistance: JIS 10K flanges are made of materials such as stainless steel, carbon steel, and alloyed steel, which are known for their excellent corrosion resistance. This ensures the flanges last longer and require less maintenance.
5. Cost-effective: Compared to other types of flanges, JIS 10K flanges are relatively affordable, making them a cost-effective solution for many piping applications.
6. Standardization: JIS 10K flanges conform to the Japanese Industrial Standards (JIS) specification, ensuring that they are manufactured to a consistent standard. This makes them easier to source and ensures that they meet the required specifications.
Overall, JIS 10K flanges offer several advantages that make them a reliable and cost-effective solution for a wide range of industrial piping applications.



Application

JIS 10K flanges are used in a wide range of industrial piping applications, especially in Japan and other parts of the world. Here are some common applications of JIS 10K flanges:

1. Water supply systems: JIS 10K flanges are commonly used in water supply systems, including potable water, wastewater, and irrigation systems.

2. HVAC systems: JIS 10K flanges are also used in heating, ventilation, and air conditioning (HVAC) systems, including those in commercial and residential buildings.

3. Oil and gas pipelines: JIS 10K flanges can be used in oil and gas pipelines, including those that transport crude oil, natural gas, and other petroleum products.

4. Chemical processing: JIS 10K flanges are suitable for chemical processing applications, including those that involve the transportation of corrosive fluids and gases.

5. Power generation: JIS 10K flanges can be used in power generation applications, including those that involve the transportation of steam, water, and other fluids in power plants.

6. Marine applications: JIS 10K flanges are also used in marine applications, including shipbuilding, offshore platforms, and other marine structures.



Overall, JIS 10K flanges are a versatile and reliable solution for a wide range of industrial piping applications, particularly in moderate pressure and temperature conditions. Their ease of installation, cost-effectiveness, and corrosion resistance make them a popular choice for many industries.



Welcome to choose our JIS 10K flange!

JIS 10K flange is a type of flange that is widely used in the piping industry. It is designed according to the Japanese Industrial Standards (JIS) and has a nominal pressure rating of 10 kilograms per square centimeter (K). This flange is commonly used in piping systems that transport fluids or gases at low to moderate pressures.



The JIS 10K flange is made of high-quality materials and is produced with advanced manufacturing techniques. The flange has a standard diameter that ranges from 15mm to 2000mm, which makes it suitable for a wide range of applications. It is also available in different materials such as carbon steel, stainless steel, and alloy steel, depending on the specific requirements of the piping system.



One of the key features of the JIS 10K flange is its easy installation process. The flange has bolt holes that are arranged in a circular pattern, which makes it easy to align and connect to the piping system. Additionally, the flange has a raised face that provides a sealing surface for the gasket, ensuring a tight and leak-free connection.



At Hebei Pipefun Pipe and Fitting Facility Co., Ltd., we take pride in producing high-quality JIS 10K flanges that meet the industry standards. Our JIS 10K flanges are made of top-grade materials and undergo strict quality control procedures to ensure their durability and reliability. We have a team of experienced engineers and skilled workers who are dedicated to producing flanges that meet the specific requirements of our customers.



In conclusion, the JIS 10K flange is a reliable and cost-effective solution for piping systems that operate at low to moderate pressures. If you are looking for a high-quality JIS 10K flange, you can trust Hebei Pipefun Pipe and Fitting Facility Co., Ltd. to provide you with a product that meets your needs and exceeds your expectations. Please contact us for product catalog and quotation!



• Product Display

Pipefun Pipe keeps more than 2000 tons stocks at hand, we offer one stop buying and fast delivery. Full sizes and full standards products are available. We also have ISO and API 5L certificates.

Pipefun is the relaible partner for project solution and long time business relationship! Free inquiry for good price!



Display:



• Work Shop

Pipefun Pipe is Chinese premium supplier of Flanges JIS 10k, and fittings.

Pipefun Pipe can supply JIS specification 10K piping, Flanges JIS 10k, and fittings in all grades of carbon steel, stainless steel, and other alloys.



Pipefun Pipe is Japanese standard specification which stands for Deutsches Institut. This standard for ANSI B16. 5 JIS B2220 Flanges specification include systems like both Slip On Flange & Blind Flange. The size range for the Alloy Steel 5K KS B1503 Flanges are available from DN 10 to DN 2000. Full sizes and full standards products are available. We also have ISO and API 5L certificates.



Hebei Pipefun Pipe and Fitting facility Co., Ltd., is established in 2000, it is a specialized enterprise professional in producing steel pipes,Flange JIS 10k and pipe fittings. Choosing us to be your business partner can bring you great advantages in business! There are 25 engineers and 89 skilled workers in our factory.Welcome to contact us if you are interested in our products.
