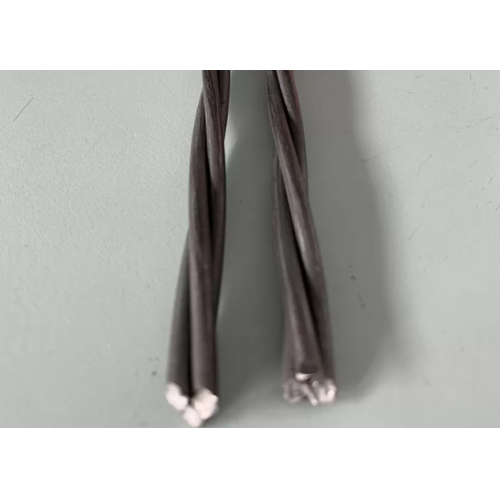

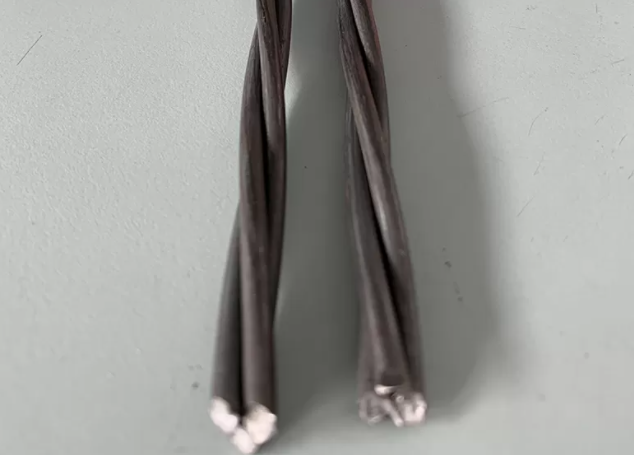

Three-Wire PC Strand

3 Wire PC Strand is produced by us strictly in according with Japanese industrial Standard JIS G3536 , this is steel strand for prestressed concrete.  We have specifications SWPR2L - 2.9 mm (2-wire strand ) and SWPD 3L - 2.9 mm ( 3-wire strand ) available.

Product Description

3 Wire PC Strand is produced by us strictly in according with Japanese industrial Standard JIS G3536 , this is steel strand for prestressed concrete.  We have specifications SWPR2L - 2.9 mm (2-wire strand ) and SWPD 3L - 2.9 mm ( 3-wire strand ) available.



ADVANTAGES

-Primary advantages

2-wire strands and 3-wire strands express individual wire diameters in the standard . We use high quality of wire - drawing mould and control individual wire diameter within very narrow tolerance range.



-Why should I buy this and 3- wire pc strand ?

2-wire strands and 3-wire strands is manufactured using the wire rods specified in JIS G3502, the wire rods have been cold worked after processing with patenting.

The 2-wire strands and 3-wire strands is processed with bluing in the final process for the purpose of relieving residual strain.

The 2-wire strands and 3-wire strands is free from joints.

When the 2-wire strands and 3-wire strands is cut without binding , it is strand and unraveled



-What makes this product different to other factory's 2-wire strands and 3-wire strands?

We have full specifications of 2-wire strands and 3-wire strands available.

Package could be customized.



USE

-Where can our

-Where can our 2- and 3- wire pc strand be used?

Pretensioned and posttensioned prestressed concrete construction.

Concrete products manufacture, such as concrete railway sleeper , precast beam , concrete pole/ concrete colum



SPECIFICATIONS

Structure Standard Nominal diameter Wire Diameter Tolerance on Strand Diameter Nominal Area of Section Weight of strand Tensile Strength, Rm Minimum Breaking load,Fm 0,2% proof force e, Fp0.2 Lay Length Relaxation Value
mm mm mm (mm2) (kg/1000m) (N/mm2) KN KN mm %
1X2 JIS3536-SWPR2L 5.8 2.9 +0.03.-0.03 13.21 104.0 1860 25.5 22.6 (12-16)d 2.5 Max
1X3 JIS3536-SWPD3L 6.2 2.9 +0.03.-0.03 19.82 156.0 1860 38.2 33.8 (12-16)d 2.5 Max



PACKAGES:

As per clients’ requirements.
