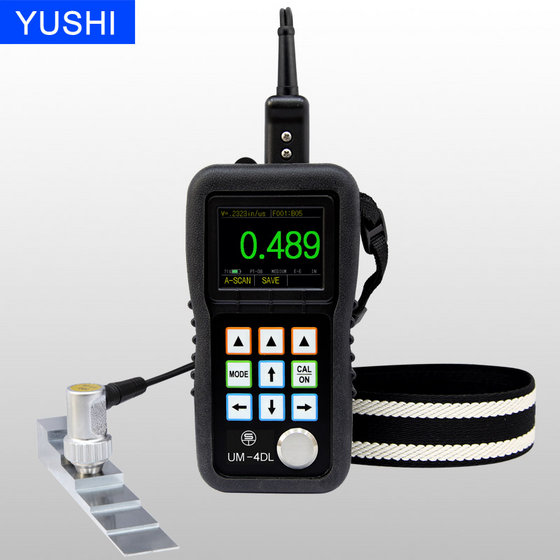

NDT Gauge Portable Digital A/B-Scan Ultrasonic Thickness Gauge
Product Description
Min Order Quantity：1 Set
Supply Ability：100 units /Month
Port：China
Delivery Lead Time：Shipped in 3 days after payment
Country/Region：China
City：Shenyang
Product Attributes
- - Model Number UM-4 Series
- - Place of Origin China
- - Application metal thickness measureme
- - Unit Mm/inch (selectable)
- - Display Type 128*64 dot-matrix LCD
- - Measuring range 0.8mm to 300mm
- - Update Rate 4Hz
- - Related Keywords Gauge, NDT Gauge, Thickness Gauge, Ultrasonic Thickness Gauge
Description by Manufacturer
Product Description
NDT Gauge Portable Digital A/B-Scan Ultrasonic Thickness Gauge
Features of Ultrasonic thickness gauge UM-4 DL
The innovative A scanning snapshot function marks the economic thickness gauge into digital age.
UM-4 first provides A scanning waveform display function in the similar products of other manufacturer. Ultrasonic is nolonger an abstract conception, users could see the ultrasonic signal directly, to verify if the thickness reading is correct, analyze the cause of the problem and help users to find the solution of the problem.
The only real 0.01mm resolution of utrasonic thickness tester in the similar products.
The display resolution of ultrasonic thickness is usually 0.01mm, but it's hard for the real resolution up to 0.01mm. Ordinary timing counter within the thickness gauge is generally below 30 MHZ. With the break through full digital technology and special algorithm, the true resolution of UM-4 can reach 0.01mm. Lots of experiments prove that it's easy for UM-4 to distinguish that thickness is only 0.01mm difference of two blocks.
Kindly Remander: The instrument does not contain rubber sheath. if you need, please contact our online customer service.
Larger and More convenient storage capacity
Store 100,000 thickness values, 20 - 200 times of similar products.
We are the first adopt grid format storing files, one screen can display 15 thickness values, and according its position in grid, which is more convenient for the users to browse the thickness datas.
USB 2.0 full speed connector.
Zeroo Cross Measurement Technology
Based on full digital technology, with zero cross measurement technology, the measured value will not be affected by echo intensity, material attenuation coefficient, gain and the height of gate, keep high measurement stability and reliability.
Update rate
Selectable 4Hz, 8Hz, 16Hz
4Hz for ordinary application, 8Hz and 16Hz for more quick scan.
Easy Operation
UM-4 Series is a very simple operation instrument, users dont need any training to use.
More Practical Functions
Gain:Adjustable High, Medium or Low
Alarm Mode:Dynamic change the color of thickness readings for alarming
Difference/Reduction Rate:Difference mode displays the difference between the actural value and the normal value. Reduction rate calculates and shows the percentage of the thickness reduction when the material become thin. Typical application is to measure the metal material which is due to bending and becomes thin.
Max./Min. Capture:On this mode, the current thickness, minimum thicknessand the maximum thickness will be shown on the screen at the same time.
Multi-Language Available:Chinese, English, Japanese, French, German, etc.
Specifications of UM-4 Series Ultrasonic Thickness Gauges
The Difference Between UM-4 Series Technical Specifications
More Application
UM-4 Series A/b-Scan Ultrasonic Thickness Gauges is used for measuring the thickness of metal materials, pipes, pressure vessels, sheet metals (steel, aluminum), plastic, steel pipes, PVC pipes, glass and other materials. Also be widely used in manufacturing, metal processing industry, chemical industry, industry inspection and testing field.
Certification
Packing & Delivery
Standard Dimension
Standard Configuration
Note: Without Battery and Coupant if By Air Transportation.
About Us
Shenyang Yushi Xianfeng Inspection Instrument Co.,Ltd is a professional NDT instrument manufacture located in Shenyang, China. We are established in year 1985 and we have many years experience in NDT instruments manufacture. We mainly produce ultrasonic thickness gauges, leeb hardness testers, coating thickness gauges, Industrial X-ray film viewers, UV lamps, etc.
Related Products and Certification
FAQ
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept OEM orders?
A: Yes, we provide OEM services to worldwide customers.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for single order is 1-3 days, for bulk orders is 3-10 days.
Q:How to place orders?
A: 1. Email us the model and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.
Certificates
- - CE 12010134
Price
- Price US$ 713 ~ 950 / Set
Packaging & Shipping
- - Packingin carton
- - Packaging Size153 x 76 x 37 ( Millimeters)
- - Package Weight 200 ( Grams )
- - Delivery Lead TimeShipped in 3 days after payment
- - Minimum Order 1 Set
- - Supply Ability100 units /Month
- - Delivery PortChina
